DESCRIPTION
KIT CONTENTS Characterized colloidal gold particles for: Characterization of scanning tip geometry
Reliable calibration of the vertical scale of piezoelectric response
Characterizing vertical dimensions of coadsorbed biomolecules Three sizes of colloidal gold particles are available in a convenient kit form. The kit contains 8 numbered 15mm AFM discs with mica attached for calibration and tip characterization. Remaining colloidal gold can be used for coadsorption with biomolecules or other samples. Vesenka J, Manne S, Giberson R, Marsh T, and Henderson E, 1993. Colloidal Gold Particles as an Incompressible Atomic Force Microscope Imaging Standard for Assessing the Compressibility of Biomolecules. Biophysical Journal 65:1-6 ABSTRACT Colloidal gold particles have multiple uses as three-dimensional atomic force microscopy imaging standards because they are incompressible, monodisperse, and spherical. The spherical nature of the particles can be exploited to characterize scanning tip geometry. As uniform spheres, colloidal gold particles may be used to calibrate the vertical dimensions of atomic force microscopy at the nanometer level. The monodisperse and incompressible nature of the gold can be used to characterize the vertical dimension of coadsorbed biomolecules. Simultaneous measurements of gold with tobacco mosaic virus show that, at the same applied vertical force, the tobacco mosaic virus is undamaged by blunt tips but is compressed or disintegrated under sharper scanning styli, suggesting that specimen degradation is partly a pressure-dependent effect. PELCO® Technical Notes, PELCO® Atomic Force Microscopy Calibration Kit, Prod. No. 16200 (PDF) PELCO® Technical Notes, PELCO® Atomic Force Microscopy Calibration Kit, Prod. No. 16205 (PDF) Properties & Chemical Composition of Mica Grade V1 PELCO® AFM Gold Standard Kit 16200 Kit Contain: PELCO® 15mm AFM Disc Carrier

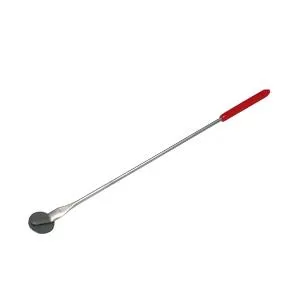

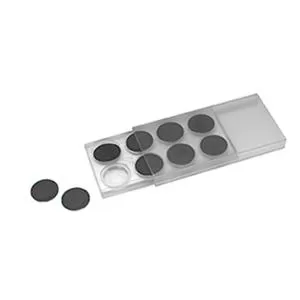

15mm AFM Discs, numbered with 9.9mm Mica Discs attached, 8 each in a 16214 PELCO® Disc Carrier PELCO® AFM Disc Pickup Tool
Gold Colloid, 5nm Range, 500µl
Gold Colloid, 15nm Range, 500µl
Gold Colloid, 30nm Range, 500µl Poly-L-Lysine, 0.1%, 500µl Same as above plus 2 additional gold sizes, 10 & 20nm range 16205 Kit Contain: PELCO® 15mm AFM Disc Carrier
15mm AFM Discs, numbered with 9.9mm Mica Discs attached, 8 each in a 16214 PELCO® Disc Carrier PELCO® AFM Disc Pickup Tool
Gold Colloid, 5nm Range, 500µl
Gold Colloid, 15nm Range, 500µl
Gold Colloid, 30nm Range, 500µl Poly-L-Lysine, 0.1%, 500µl
Gold Colloid, 10nm Range, 500µl
Gold Colloid, 20nm Range, 500µl
