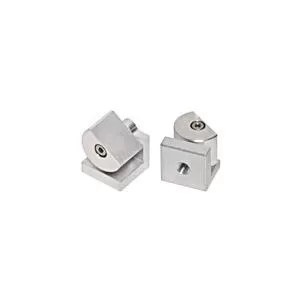

DESCRIPTION Interchangeable Modular SEM Specimen Holders This extensive line of specimen holders all have a female M4 thread and are compatible with all of our modular SEM Stage Adapters. If used with the Jeol or ZEISS/LEO dovetail stage adapter one of the adapter buttons 15372 or 15372-10 is needed. Compact Variable Tilt Mount, M4 This Compact Variable Tilt Specimen Mount allows for easy mounting and tilting small samples from 0° – 90° and SEM investigation with small working distances. Markings for 30°, 45°, 70° and 90°. Table size is 11 x 14mm (0.46″ x 0.55″). Overall size is 14 x 14.3 x 14.5mm (0.55″ x 0.56″ x 0.57″). Made of aluminum with stainless steel screw. Allen wrench included. Extended Button (15372-10) is needed when used with the Dovetail Stage Adapters (15371 or 15397). Screw used is M2 x 12mm, socket cap head screw, stainless steel.
