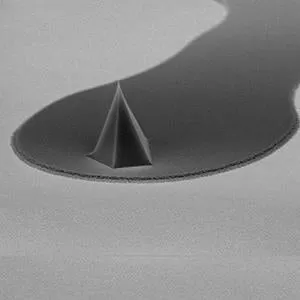

FastScan Probes, 110kHz (Fluid), 0.25N/m, Proprietary Reflex Coating, 10-Pack DESCRIPTION
TIP SPECIFICATIONS CANTILEVER SPECIFICATIONS The latest addition to the cost effective FASTSCAN probe series is the FASTSCAN-D, designed for optimal performance in fluid, at high scan rates for AFM dynamics observations. The unique design of these probes renders a balance of high resonant frequency and low spring constant, enabling imaging of the fragile biological samples without deforming the samples’ fundamental atomic structures. This series of probes were designed to continue pushing the limits of the Bruker unique FastScan technology that enables biological observations in fluid in a small volume flow-cell in conjunction with heating control. Tip Geometry:
Rotated (Symmetric) Tip Height:
1.5 – 4.5 Front Angle:
15 ± 2.5 Back Angle:
25 ± 2.5 Side Angle:
17.5 Tip Radius (Nom):
5 Tip Radius (Max):
8 Tip Set Back (Nom):
1.5 Tip Set Back( RNG):
0 – 3.0 110 kHz nominal resonant frequency in fluid. FastScan-D probes have less than 3 degrees of bend. Cantilever Thickness (Nom):
0.145 Cantilever Thickness (RNG):
0.135 – 0.155 Cantilever Geometry:
Special Cantilevers Number:
1 Back Side Coating:
Proprietary reflective coating
