Description
2.8N/m, 75kHz, Al Reflective Coating, 10-Pack DESCRIPTION

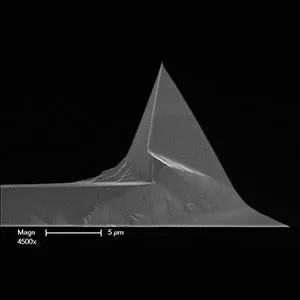

TIP SPECIFICATIONS CANTILEVER SPECIFICATIONS A pack of Silicon Probes. Quantity=10 Bruker’s Value Line of soft TappingMode™ and Force Modulation probes, with reflective coating. This probe is also available without Aluminum reflex coating as model FMV. Specifications: – 2.8N/m, 75kHz, Al Reflective Coating. – Unmounted for use on any AFM. Tip Geometry:
Standard (Steep) Tip Height:
10 – 15 Front Angle:
25 ± 2.5 Back Angle:
15 ± 2.5 Side Angle:
22.5 ± 2.5 Tip Radius (Nom):
8 Tip Set Back (Nom):
11.5 Tip Set Back( RNG):
8 – 15 The Aluminum reflective coating on the back of the cantilever increases the laser signal by 2.5 times. For general imaging, it is typically not necessary to have a reflective coating. Reflective coatings are recommended for thin cantilevers, very reflective samples, and machine vision applications. Cantilever Material:
0.01 – 0.025 Ωcm Antimony (n) doped Si Cantilever Thickness (Nom):
2.75 Cantilever Thickness (RNG):
2.0 – 3.5 Cantilever Geometry:
Rectangular Cantilevers Number:
1 Back Side Coating:
Reflective Aluminum
