Gold Coated Force Modulation AFM Probe DESCRIPTION
TIP SPECIFICATIONS

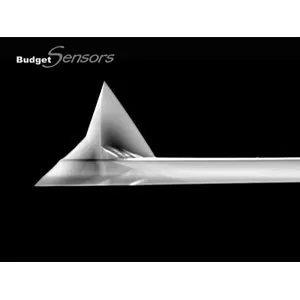

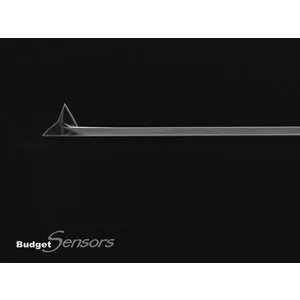

CANTILEVER SPECIFICATIONS Gold Coated Force Modulation AFM Probe Monolithic silicon AFM probe for force modulation and pulsed force mode (PFM) in air and liquids. The rotated tip allows for more symmetric representation of high sample features. The consistent tip radius ensures good resolution and reproducibility. The AFM holder chip fits most commercial AFM systems as it is industry standard size. AFM Tip SHAPE
Rotated Tip Height
17µm From 15µm To 19µm Tip Setback
15µm From 10µm To 20µm Tip Radius < 10nm Half Cone Angle
20°-25° along cantilever axis, 25°-30° from side, 10° at the apex AFM Cantilever Shape
Beam Force Constant
3N/m – From 1N/m To 7N/m Resonance Frequency
75kHz – From 60kHz To 90kHz Length 225µm – From 215µm To 235µm Width 28µm – From 23µm To 33µm Thickness 3µm – From 2µm To 4µm
