Description

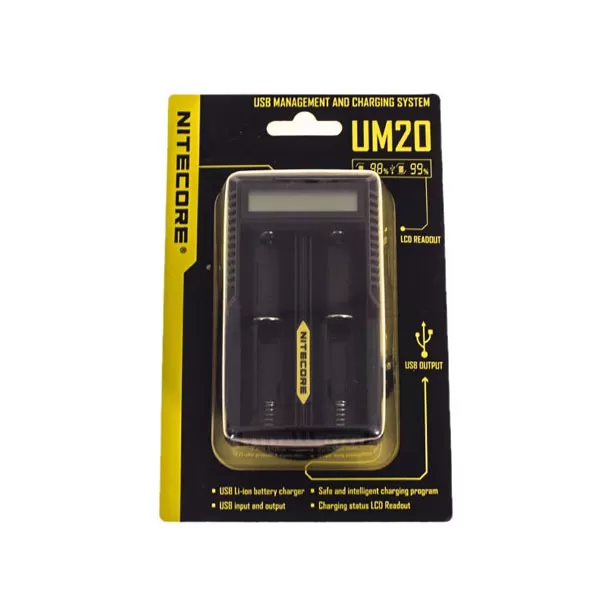

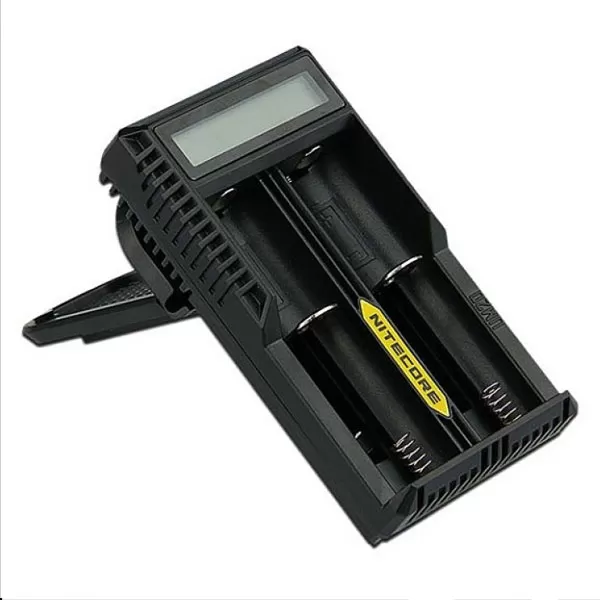

Intellicharger UM20
The Nitecore Charger UM20 is a universal smart charger compatible with almost all cylindrical rechargeable batteries, thus eliminating the need to own several chargers. The UM20 automatically detects Li-ion, Ni-MH and Ni-Cd batteries, and through manual selection is also capable of charging LiFePO4 batteries. Parameters
Input voltage: Micro USB DC 5V Output voltage: 4.2V ±1% / 5V Output current: 1000mA / 500mA Compatible with: Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440 Dimensions: 100mm× 56mm×35mm This product comes with 1x Nitecore UM20 Charger
1 x USB Cable 2 plug types available. Integrated digital LCD screen. 2 side buttons: MODE and SLOT. Intellligent circurity. Global insurance. Features

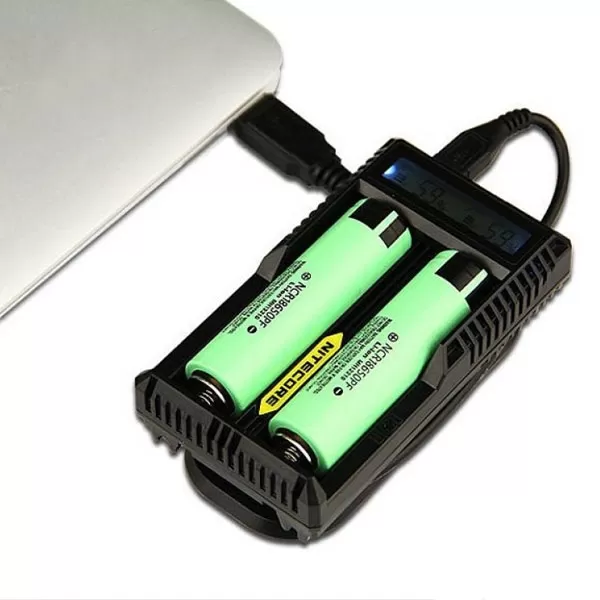

1. Capable of charging 2 battery simultaneously 2. Compatible with and identifies Li-ion (26650, 22650, 18650, 17670, 18490, 17500, 18350, 16340(RCR123), 14500, 10440), Ni-MH and Ni-Cd (AA, AAA, AAAA, C) rechargeable batteries 3. Optimized charging design for IMR batteries 4. Integrated LCD panel clearly displays charging parameters and progress 5. Two conveniently located side buttons allow easy selection of specific battery types and charging parameters 6. Intelligent circuitry detects the battery type and status before entering automatic charge mode (CC, CV, dV/dt) 7. Automatically detects battery power status and selects the appropriate voltage and charge mode (with the exception of LiFePO4 batteries which require manual selection) 8. Compatible with LiFePO4 batteries 9. Compatible with small capacity batteries 10. Automatically stops charging when complete 11. Features over-charge prevention to protect batteries 12. Features temperature monitoring to prevent overheating 13. Made from durable ABS (fire retardant / flame resistant) 14. Features reverse polarity protection 15. Designed for optimal heat dissipation 16. Certified by RoHS, CE, FCC and CEC 1. Plug one end of the power cord or car charging adapter. Plug the other end of the cord into an applicable outlet. The LCD display and all battery indicator bars will illuminate as the charger runs a quick self-test. When test is complete, the name of the product will appear on the screen, the bars will dim and the charger will enter into stand-by mode. If no batteries are detected within 1 minute, the charger will automatically enter Eco Mode (the LCD screen will turn off). When a battery is installed while in Eco Mode, simply press any button to activate the LCD screen.
