Description

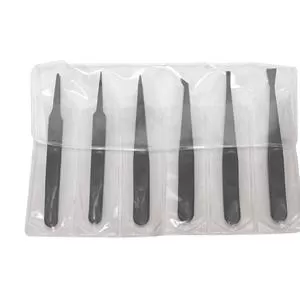

DESCRIPTION Carbon reinforced PVFD and Carbon reinforced Polyamide 66. 6 styles in each material ESD Safe, Cleanroom compatible. 5418-5 – Set of 5 PELCO® SV ESD Safe, PVDF Tweezers in clear plastic pouch. Contains #5410 #5412 #5415 #5413 #5414 5419-6 – Set of 6 PELCO® SV ESD Safe, PVDF Tweezers in clear plastic pouch. Contains #5410 #5411 #5412 #5415 #5413 #5414 PELCO® ESD Safe SV, PVDF PELCO® ESD Safe CF, Polyamide 66 Tweezers Sharp Points and Flat Tips These high performance precision, conductive, PELCO® SV ESD Safe, PVDF And Pelco® CF Polyamide tweezers are ideal for forensic, electronic and sample preparation applications where handling of scratch-sensitive material or samples is required. The soft touch surface avoids cutting or damaging hairs, fibers, paper, bullets and rounds. Compatible for clean room applications and suitable for chemical processing. Light weight, strong and sturdy material. Also ideal for magnetic applications, since the material will not be magnetized. The tweezers are made of carbon fiber reinforced PVDF (polyvinylidene flouride) or CF (carbon fiber reinforced polyamide 66) and have the following features: Smooth surface paired to high mechanical strength and toughness
Anti-static, ESD safe material
Heat stabilized, continuous use with temperatures ranging from -40° to 150°C (-40 to 302°F)
High purity – clean room compatible
High abrasion resistance
Excellent chemical resistance to most acids and solvents
Resists HF (40% – 90°C / 194°F); HNO3 (50% – 90°C / 194°F); HCL (36% – 90°C / 194°F)
Resistant to UV and X-ray radiation
Chemical Compatibility Plastic Material Chart for CF, CP, LC, SV and DG Typical applications: Handling of scratch sensitive samples
Cleaning and etching processes
Handling of static and/or static-sensitive components
Handling of soft specimens
Handling of magnetic specimens
