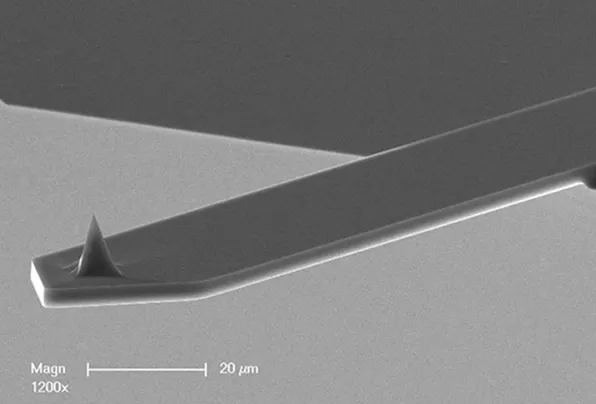

SPECIFICATIONS A 10 pack of probes for tapping mode imaging and nanoIR spectroscopic measurements. Pre-mounted on half washer mounts (link 1560-00) specifically for use in Brukers nanoIR platform. This 300khz tapping mode probe has a full wrap gold coating, on the reflex side – for increased feedback laser signal, on the tip side – to enable nanoIR measurements. General Specifications Property
Nominal Value
Minimum
Maximum Tip Radius (nm)
20.0
—
35.0 Frequency (kHz)
300
200
400 Length (µm)
125
115
135 Spring Constant (N/m)
40
20
80 Width (µm)
40
38

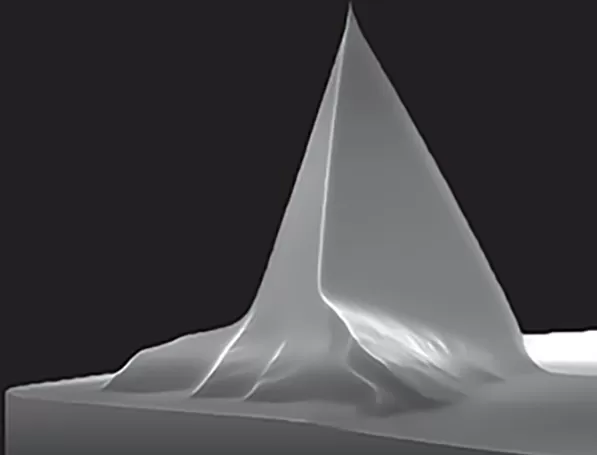

42 Tip Specifications Feature
Value Tip Height
12.5 µm Front Angle
17.5º Back Angle
25.0º Side Angle
20.0º Coating
Au (Gold) Cantilever Specifications Feature
Value Material
Antimony (n) doped Si (0.010–0.025 Ω·cm) Geometry
Rectangular Number of Cantilevers
1 Thickness (Nominal)
3.4 µm Back Side Coating
Au (Gold), 50 nm
