ScanAsyst-Air-HPI Probes, 10-Pack DESCRIPTION
TIP SPECIFICATIONS CANTILEVER SPECIFICATIONS New ScanAsyst and PeakForce Tapping probes designed for applications in a high-volume environment on samples with high optical reflectivity that may cause laser interference and feedback into the AFM’s optical position-sensitive detector. M Recommended for use with any PeakForce Tapping enabled Bruker AFM.

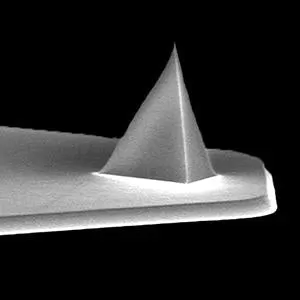

Optimized for PeakForce Tapping operation in air. 0.25 N/m spring constant. One pack of 10 probes. Tip Geometry:
Rotated Tip Height:
3 – 8 Front Angle:
15 Back Angle:
1 – 24 Tip Radius (Nom):
2 Tip Radius (Max):
12 Tip Set Back (Nom):
3 Tip Set Back( RNG):
0-5 Cantilever Material:
Silicon Nitride Cantilever Thickness (Nom):
0.58 Cantilever Thickness (RNG):
0.53-0.63 Cantilever Geometry:
Special Cantilevers Number:
1 Back Side Coating:
Reflective Al
